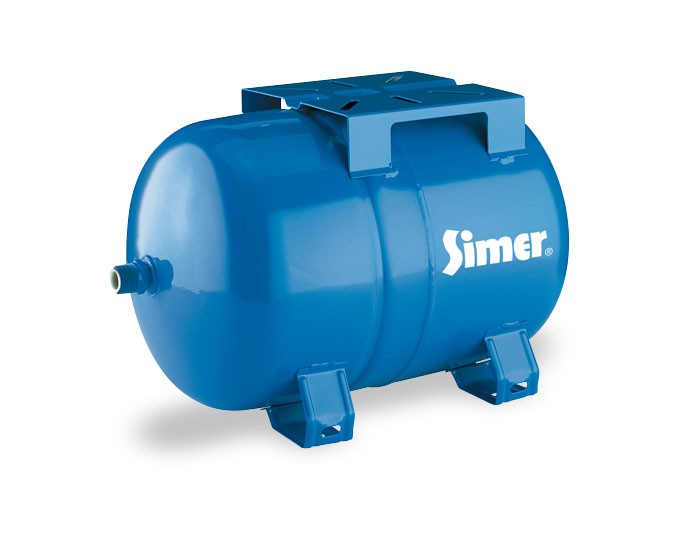

Pentair Simer HT7 7 Gallon Horizontal Pre-Charged Bladder Tank

Compact pre-charged tank fits in compact spaces.  Convenient mounting bracket allows mounting of a pump directly on top of tank.

KEY FEATURES

  • Compact design
  • Factory-installed mounting bracket allows mounting of pump directly on tank

WARRANTY

5-year limited warranty

Performance Curves

PerformanceCurves_7 Gallon Horizontal Pre-Charged Bladder Tank

Specifications

BODY CONSTRUCTION:  Heavy Gauge Steel
BODY FINISH:  Electrostatically Applied Baked On Polyester

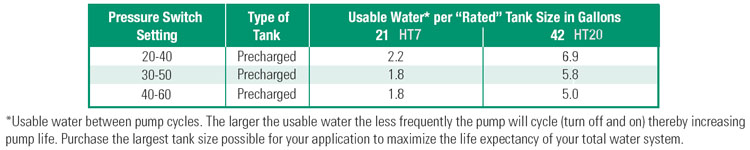

DRAWDOWN (Usable Water) with 20-40 SWITCH:  2.2 Gal
DRAWDOWN (Usable Water) with 30-50 SWITCH:  1.8 Gal
DRAWDOWN (Usable Water) with 40-60 SWITCH:  1.8 Gal
MAX CAPACITY:  7 Gal
RATED (EQUIVALENCY) CAPACITY:  21 Gal
MAX OPERATING PRESSURE:  100 PSI
CONNECTION SIZE:  3/4" NPT
WEIGHT:  38 lbs
HEIGHT:  33"
LENGTH:  27"
MAXIMUM PRESSURE RATING:  100 PSI
