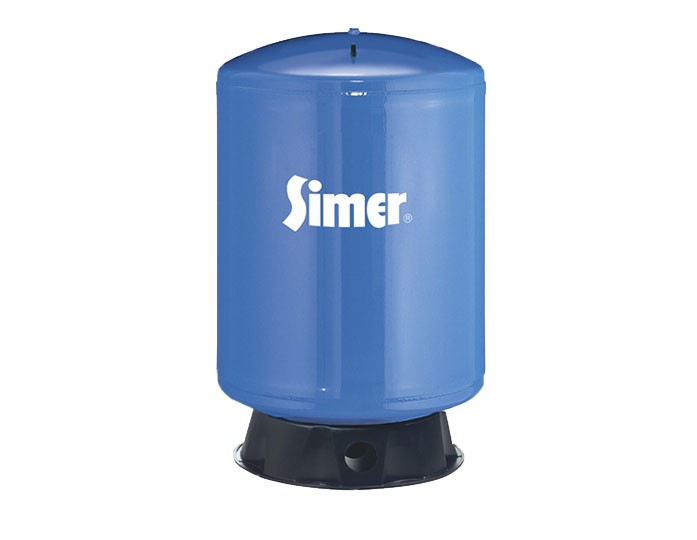

Pentair Simer VT96 85 Gallon Vertical Pre-Charged Bladder Tank

Large pre-charged bladder style tank is perfect for homes or more.  Plenty of water storage allows for longer pump run times and longer periods of pump "off" time.  Leads to longer pump life.

KEY FEATURES

  • Large capacity means fewer pump cycles
  • Prolongs the life of your pump
  • Can even lower your energy bill because of fewer pump starts

WARRANTY

5-year limited warranty

Performance Curves

PerformanceCurves_85 Gallon Vertical Pre-Charged Bladder Tank

Specifications

BODY CONSTRUCTION:  Heavy Gauge Steel
BODY FINISH:  Electrostatically Applied Baked On Polyester

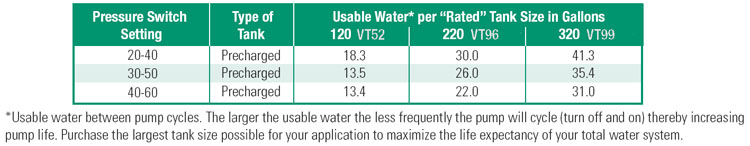

DRAWDOWN (Usable Water) with 20-40 SWITCH:  30 Gal
DRAWDOWN (Usable Water) with 30-50 SWITCH:  26 Gal
DRAWDOWN (Usable Water) with 40-60 SWITCH:  22 Gal
MAX CAPACITY:  85 Gal
RATED (EQUIVALENCY) CAPACITY:  220 Gal
MAX OPERATING PRESSURE:  100 PSI
CONNECTION SIZE:  1-1/4" NPT
WEIGHT:  121 lbs
HEIGHT:  54"
DIAMETER:  24"
MAXIMUM PRESSURE RATING:  100 PSI
