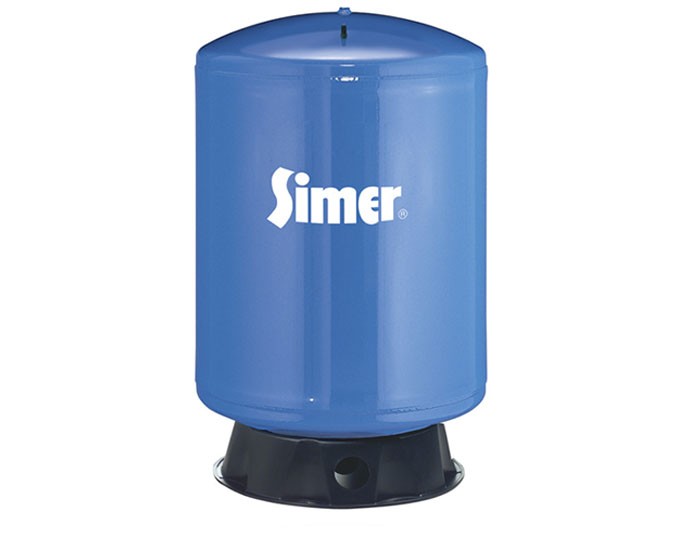

Pentair Simer VT99 119 Gallon Vertical Pre-Charged Bladder Tank

Our largest pre-charged bladder style tank is perfect for homes or more.  Plenty of water storage allows for longer pump run times and longer periods of pump "off" time.  Leads to lo longer pump life.

KEY FEATURES

  • Heavy gauge steel construction for maximum durability
  • Replaceable air/water separator, on all vertical tanks, for easy maintenance
  • Most tanks factory pre-charged at 40 PSI
  • Convenient air valve location for quick hook up
  • Certified to ANSI/NSF 61
  • Tough, appliance-like finish for extended life

WARRANTY

5-year limited warranty

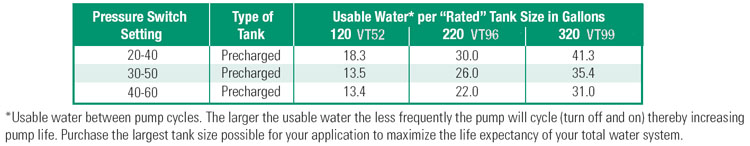

Performance Curves

PerformanceCurves_119 Gallon Vertical Pre-Charged Bladder Tank

Specifications

BODY CONSTRUCTION:  TANK: Steel / BLADDER: Vinyl
BODY FINISH:  Electrostatically Applied Baked-On Polyester
DRAWDOWN (Usable Water) with 20-40 SWITCH:  41.3 Gal
DRAWDOWN (USABLE WATER) with 30-50 SWITCH:  35.4 Gal
DRAWDOWN (Usable Water) with 40-60 SWITCH:  31 Gal
MAX CAPACITY:  119 Gal
RATED (EQUIVALENCY) CAPACITY:  320 Gal
MAX OPERATING PRESSURE:  100 PSI
CONNECTION SIZE:  1-1/4" NPT
WEIGHT:  153 lbs
HEIGHT:  68"
DIAMETER:  24"
MAXIMUM PRESSURE RATING:  100 PSI
