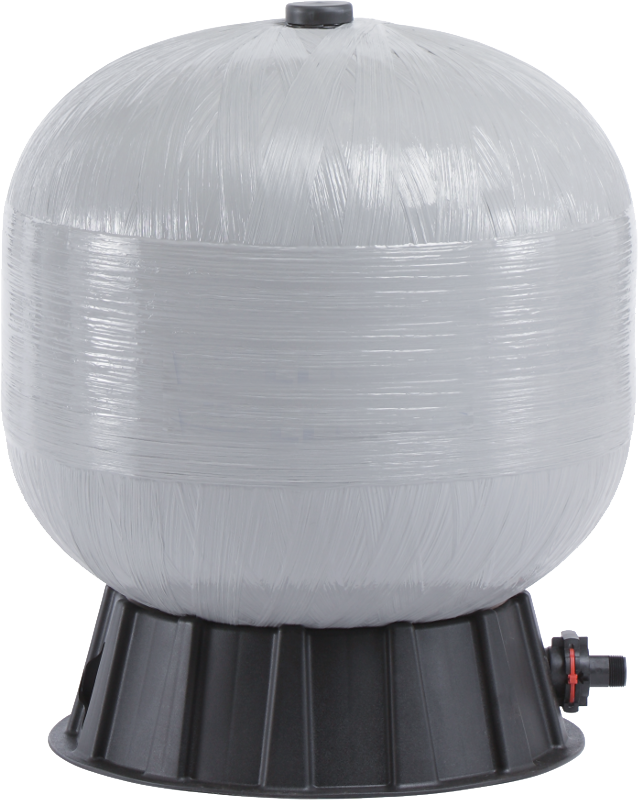

Pentair WellMate Low Profile Tanks

Designed for height-restricted applications such as mobile homes, crawl spaces and closets, our compact Low Profile Series pressure tanks give you added flexibility in small-space residential applications.

  • Highest drawdown in the industry for its profile.
  • Replaceable air cell makes field service easier.
  • Order with an optional pump mount bracket to simplify mobile home installations.
  • Mobile home, crawl space and closet applications.
Explore purchase options available for this product.
Where to Buy

Low Profile Series Features & Benefits

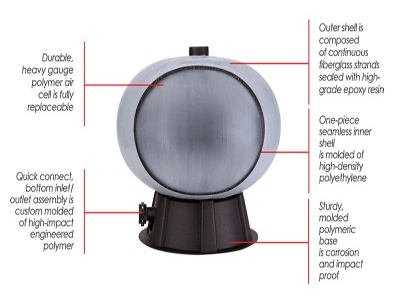

Product Diagram of Low Profile Series

Specifications

MAXIMUM OPERATING PRESSURE: 75 / 500 / 5.0
SYSTEM CONNECTION-TOP: 1/4" vent line NPT
SYSTEM CONNECTION-BOTTOM: 1 1/4" Socket
Item #CAPACITYDRAWDOWN INDIAMETER INCH CMOVERALL HEIGHT INCH CMHEIGHT INLET OUTLET TO FLOORCONNECTIONSASSEMBLY WEIGHTPALLET QUANTITY
HP-7 WM-HP-11030 / 1146.6 / 25.016 / 4143 3/4 / 1111 1/2 / 3.8Top: 1/4" vent line NPT26 / 11.89
HP-9 WM-HP-15040 / 1519.0 / 34.116 / 4156 1/2 / 1441 1/2 / 3.8Top: 1/4" vent line NPT29 /13.29
HP-8SQ WMP-HP-150-SQ40 / 1518.0 / 30.321 / 5335 1/4 / 902 / 5.1Top: 1/4" vent line NPT34 / 15.44
HP-18 WM-HP-30080 / 30317.8 / 67.421 / 5362 / 1572 / 5.1Top: 1/4" vent line NPT44 / 20.0N/A
HP-26 WM-HP-450120 / 45425.5 /96.524 / 6172 1/2 / 1842 / 5.1Top: 1/4" vent line NPT64 / 29.0N/A
Item #CAPACITYDRAWDOWN INDIAMETER INCH CMOVERALL HEIGHT INCH CMHEIGHT INLET OUTLET TO FLOORCONNECTIONSASSEMBLY WEIGHTPALLET QUANTITY
HP-7 WM-HP-11030 / 1146.6 / 25.016 / 4143 3/4 / 1111 1/2 / 3.8Top: 1/4" vent line NPT26 / 11.89
HP-9 WM-HP-15040 / 1519.0 / 34.116 / 4156 1/2 / 1441 1/2 / 3.8Top: 1/4" vent line NPT29 /13.29
HP-8SQ WMP-HP-150-SQ40 / 1518.0 / 30.321 / 5335 1/4 / 902 / 5.1Top: 1/4" vent line NPT34 / 15.44
HP-18 WM-HP-30080 / 30317.8 / 67.421 / 5362 / 1572 / 5.1Top: 1/4" vent line NPT44 / 20.0N/A
HP-26 WM-HP-450120 / 45425.5 /96.524 / 6172 1/2 / 1842 / 5.1Top: 1/4" vent line NPT64 / 29.0N/A
